Over the past few months, I have been designing a system for ingesting data from National Rail’s “Darwin Push Port Feed”. This feed contains live information about train movements, scheduling, and service alterations across the UK rail network. In this article, I will share some analysis of the service delays for three most popular (by passenger numbers) routes out of Bristol Temple Meads. These are the route to London Paddington, Cardiff Central and Clifton Down.

The Query

To obtain this data, I used the query found in the appendix, it does a few things of note:

• It fetches the last SCHED and ACT (scheduled and actual) messages for each tpl. In this case, it’s assumed the last schedule message is the most accurate.
• It attempts to correct for day rollover (where a service runs into the next day) when computing the delay for a service. This is done by comparing the schedule and actual arrival times, and if the difference is off by more than half a day (I assume no service is this late!) then it adjusts the calculation to ensure the correct delay is calculated.
• It assumes that the last and first locations updates are the destination and origin respectively. This could be incorrect if there is data missing (ie I fail to capture the start of a service).

This query was then run for each three routes, pulling back the raw data into Google Sheets for analysis.

The Analysis

To analyse the data, I needed to ensure only the correct data was being pulled in, as my query cannot currently understand directionality of a route. For example, a service can be arriving in Bristol Temple Meads from either Weston (en route to Paddington) or from Paddington (either terminating or continuing to Weston). This was done by filtering the data for only services that started in the correct direction - in this example, if I want to analyse services going to London Paddington via Bristol, they would need to terminate at either Taunton, Weston or the South West of Wales.

Now that’s done, we can see some lovely heat maps!

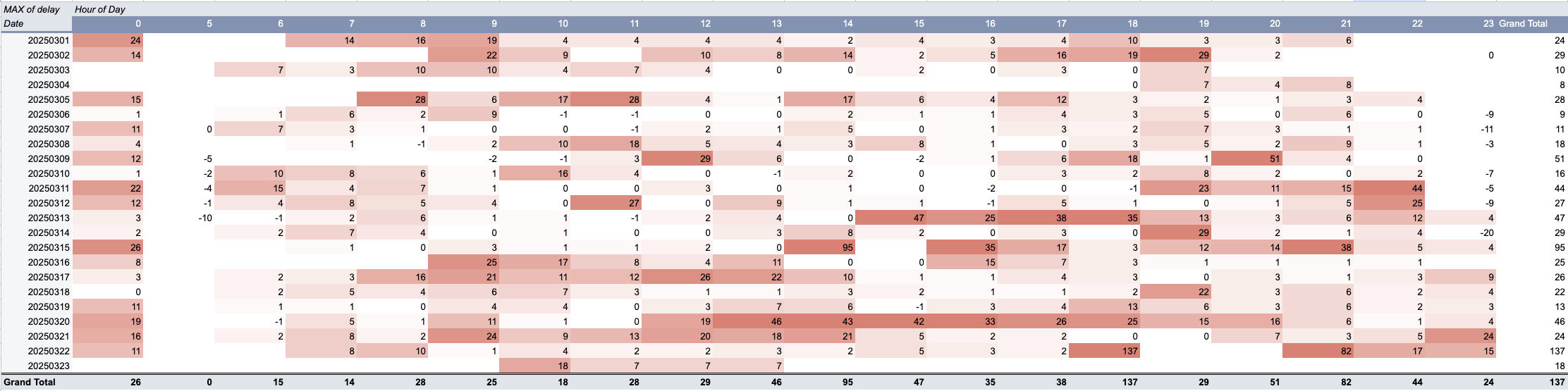

Services to London Paddington

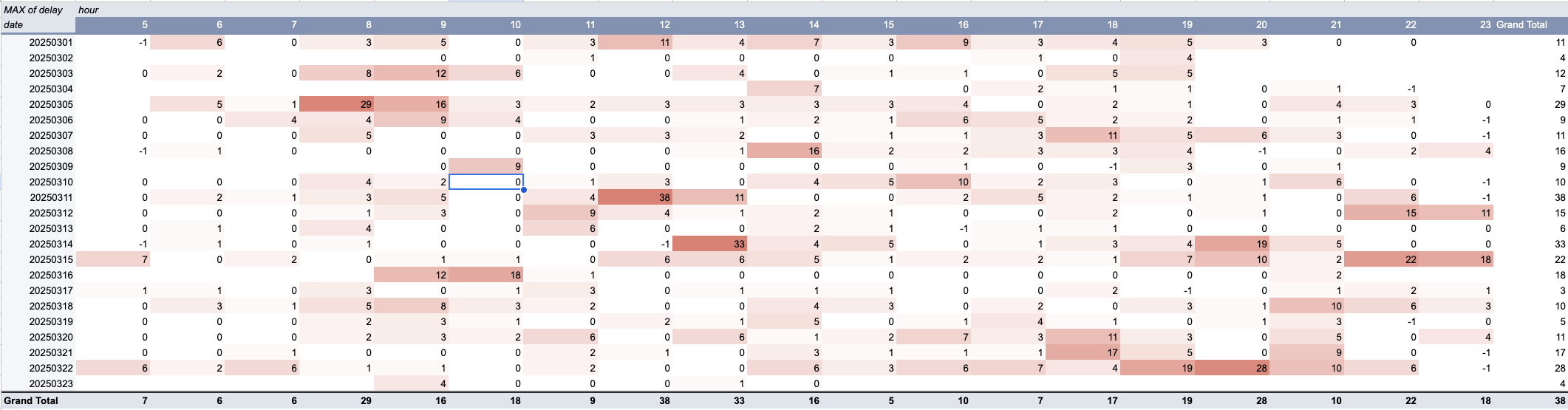

Services to Cardiff Central

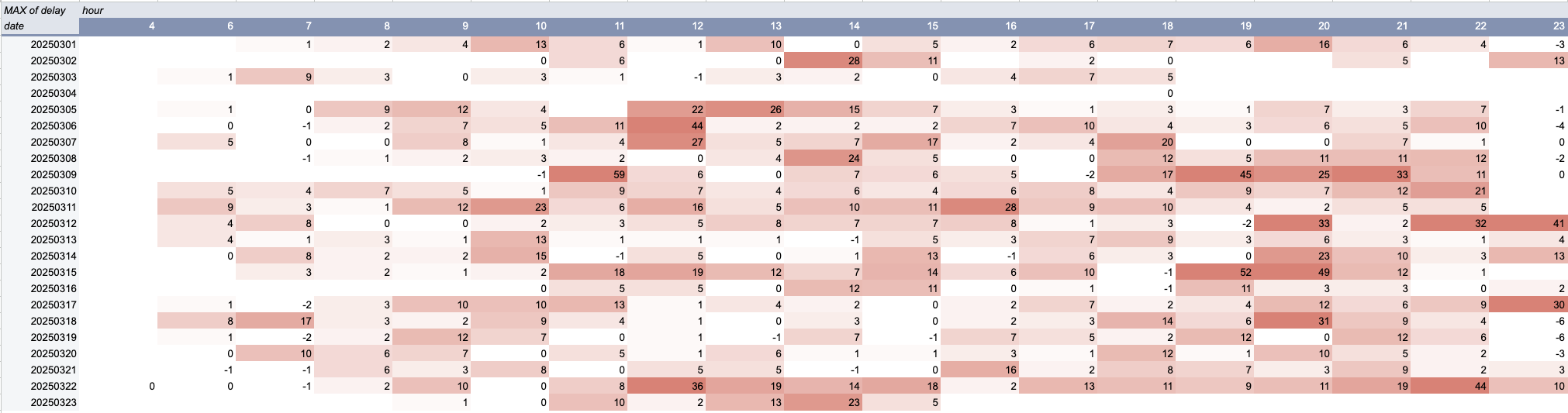

Services to Clifton Down

Instantly these charts show an interesting picture, each route has approximately the same number of services per hour (approx 2), but we can clearly see the Clifton Down route have far fewer delays than the other routes - although this could be due to the reduced distance it covers.

The Paddington services show a different story, only 5 of the days tested have a maximum delayed of less than 15 minutes! There seems to be little pattern to the delays across a given day - although the last service of the day seems especially prone to delays.

The Cardiff services show a similar amount of delays - although there are far fewer services which are not delayed at all. This however is the first route which has two different sections - Bristol to Cardiff services can come either from Taunton or Portsmouth. We can generate heatmaps for these separatley:

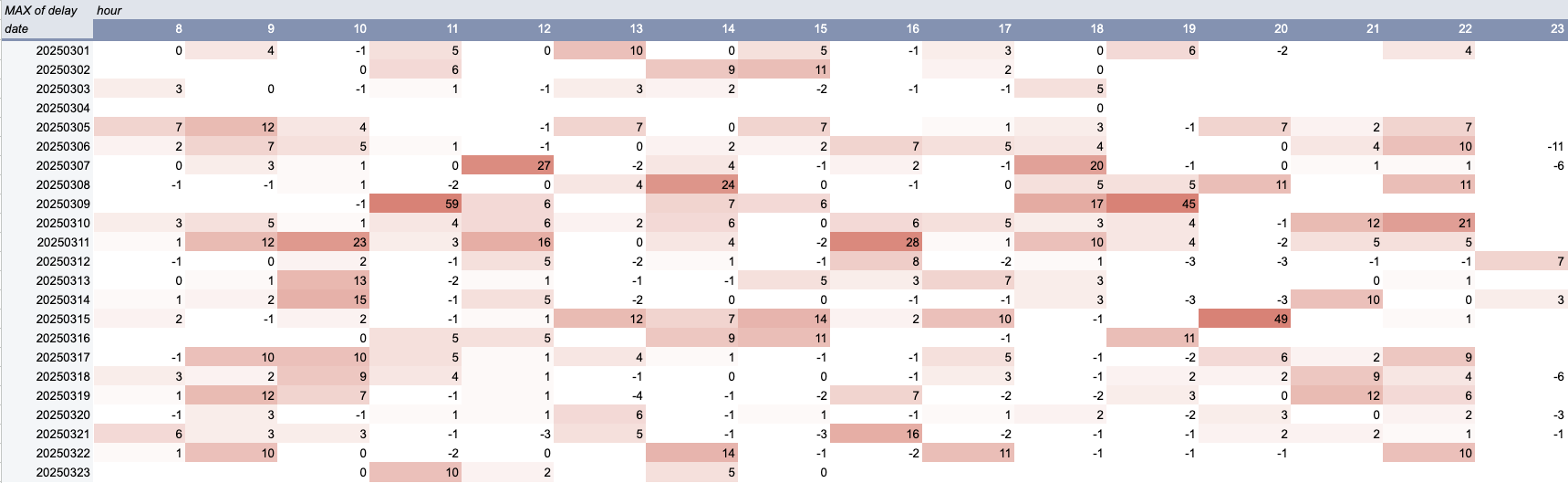

Services via Taunton

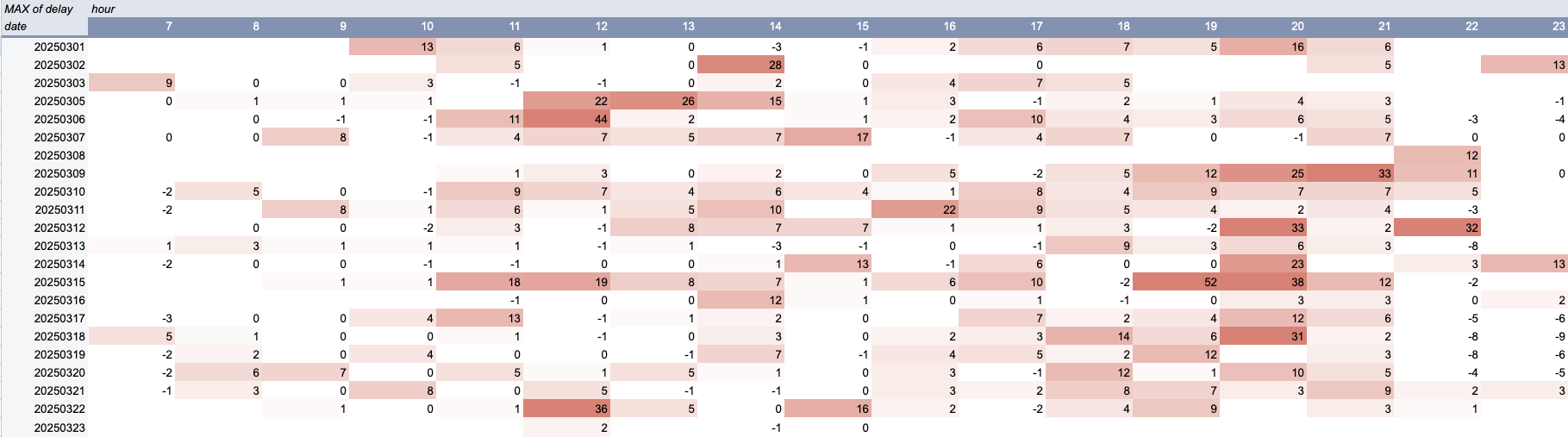

Services via Portsmouth

These extra heatmaps give us a little more insight into the source of the delays. It looks as though the Portsmouth route contributes slightly more delays than the Taunton one, which makes sense given the congestion services suffer around Portsmouth and Southampton.

This is just a first pass analysis. In future posts, I’d like to look further at where these delays originate - and if it can show us bottlenecks in the network.
